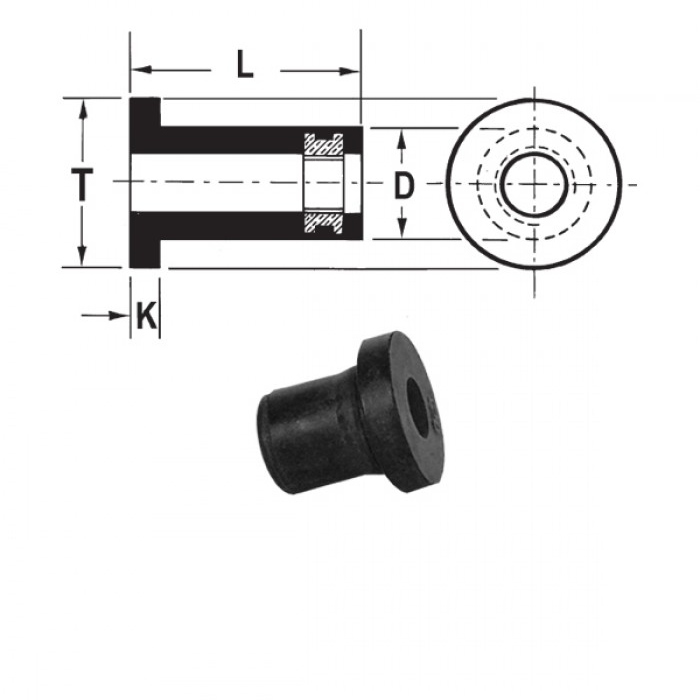

Special threaded inserts - Neoprene / Brass
Code |
|
S |
D +0.1/-0.2 |
+0,1/-0
|
T +/-0.3 |
K +/-0.3 |
L +1.0/-0.5 |
|
|
|---|---|---|---|---|---|---|---|---|---|
| 85RN314 | M3 | 0.4 - 4 | 7.9 | 8,1 | 11 | 1.2 | 12.6 | 0.36 | Data sheet |
| 85RN414 | M4 | 0.4 - 4 | 7.9 | 8,1 | 11 | 1.2 | 12.6 | 0.36 | Data sheet |
| 85RN515 | M5 | 0.4 - 4.9 | 9.6 | 9,8 | 12.7 | 0.9 | 14.1 | 0.54 | Data sheet |
| 85RN527 | M5 | 7.9 - 15 | 9.6 | 9,8 | 14 | 1.3 | 26.5 | 0.54 | Data sheet |
| 85RN541 | M5 | 20.5 - 30 | 9.6 | 9,8 | 14 | 1.3 | 39.0 | 1.14 | Data sheet |
| 85RN617 | M6 | 0.4 - 4 | 12.7 | 12,9 | 16 | 1.3 | 16 | 1.13 | Data sheet |
| 85RN626 | M6 | 0.8 - 4.7 | 12.7 | 12,9 | 19,05 | 4.7 | 21.1 | 1.69 | Data sheet |
| 85RN628 | M6 | 6.4 - 11.5 | 12.7 | 12,9 | 16.3 | 2,0 | 26.7 | 1.13 | Data sheet |
| 85RN822 | M8 | 0.4 - 4 | 15.9 | 16.1 | 21,5 | 3.2 | 18.3 | 2.82 | Data sheet |
| 85RN834 | M8 | 3.9 - 9.5 | 15.9 | 16.1 | 21,5 | 5.7 | 27.9 | 2.82 | Data sheet |
