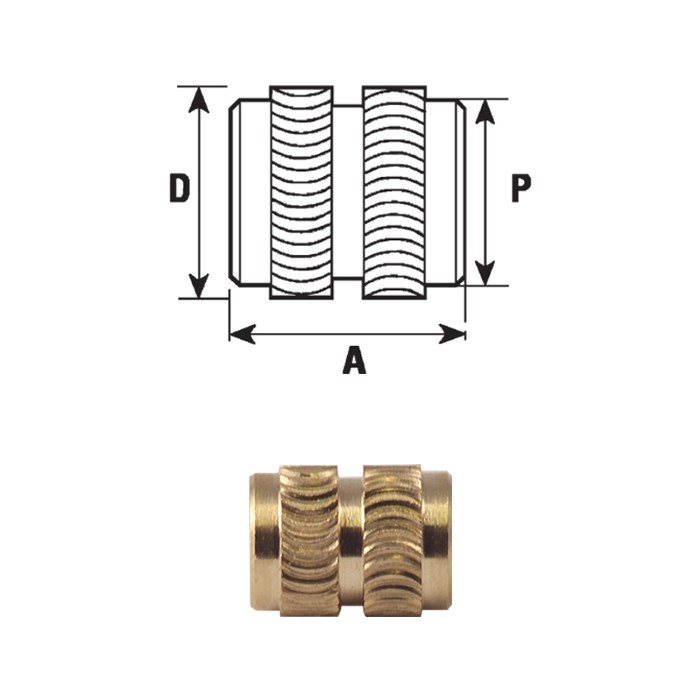

Brass threaded inserts FXHLB type heat installation

Code



Internal Thread



A



B



C



D



P


DiaHole -0,00+0,10

Min. wall thickness


Download the data sheet of the product of your interest
83FXHLBM02 M 2 3,9 0,51 4,8 3,5 3,1 3,2 1,4 Data sheet
83FXHLBM025 M 2,5 5,8 0,58 5,5 4,4 3,9 4 1,8 Data sheet
83FXHLBM03 M 3 5,8 0,58 5,5 4,4 3,9 4 1,8 Data sheet
83FXHLBM04 M 4 8,1 0,89 7,1 6,1 5,5 5,6 2,4 Data sheet
83FXHLBM05 M 5 9,5 1,07 7,9 6,9 6,3 6,4 2,8 Data sheet
83FXHLBM06 M 6 12,7 1,32 9,5 8,5 7,9 8 3,6 Data sheet
83FXHLBM08 M 8 12,7 1,32 11,1 10 9,5 9,6 5 Data sheet
Brass threaded inserts FXHLB type heat installation

Ask for a quotation

I've read and consent FIXI's privacy policy
Brass threaded inserts FXHLB type heat installation
