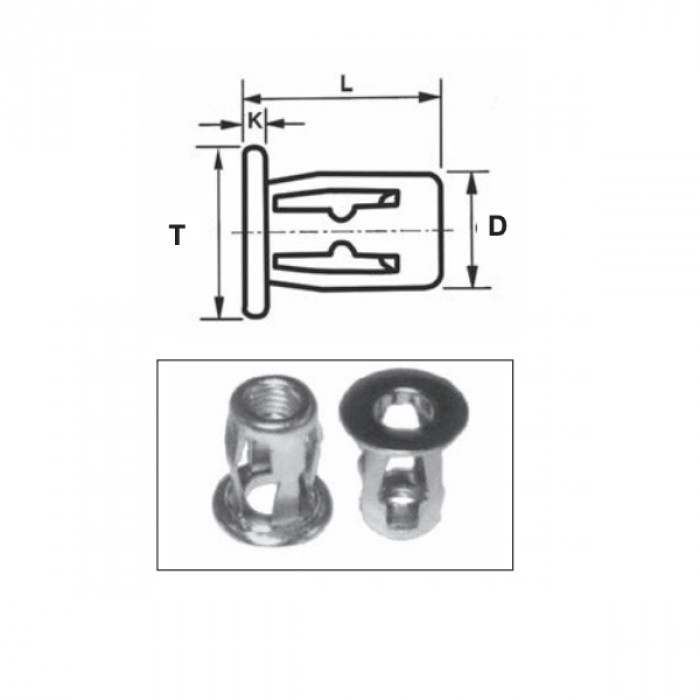

Special steel threaded inserts - Flat head
Code |
|
S GRIP |
D max |
ø hole
|
T |
K |
L |
|
|---|---|---|---|---|---|---|---|---|
| 86JFM04-C | M4 | 0.4 - 5.0 | 8.5 | 8.0 | 12.2 | 1.6 | 16.8 | Data sheet |
| 86JFM04-L | M4 | 4.7 - 9.5 | 8,1 | 8.2 | 11.9 | 1.8 | 21.4 | Data sheet |
| 86JFM05-C | M5 | 0.4 - 5.0 | 10.5 | 10.0 | 14.0 | 1.6 | 18.4 | Data sheet |
| 86JFM05-L | M5 | 4.7 - 9.5 | 9.7 | 9.8 | 13.5 | 1.8 | 22.6 | Data sheet |
| 86JFM06-C | M6 | 0.4 - 5.0 | 12.5 | 12.0 | 16.0 | 1.6 | 18.6 | Data sheet |
| 86JFM06-M | M6 | 5.0 - 10.0 | 12.5 | 12.0 | 16.0 | 1.6 | 22.9 | Data sheet |
| 86JFM06-L | M6 | 9.5 - 12.7 | 11.2 | 11.3 | 16.0 | 1.8 | 27.8 | Data sheet |
| 86JFM08-C | M8 | 0.4 - 5.0 | 15.5 | 15.6 | 18.2 | 2.0 | 21.0 | Data sheet |
| 86JFM08-L | M8 | 0.4 - 8.0 | 15.5 | 16.0 | 18.2 | 2.0 | 25.5 | Data sheet |
