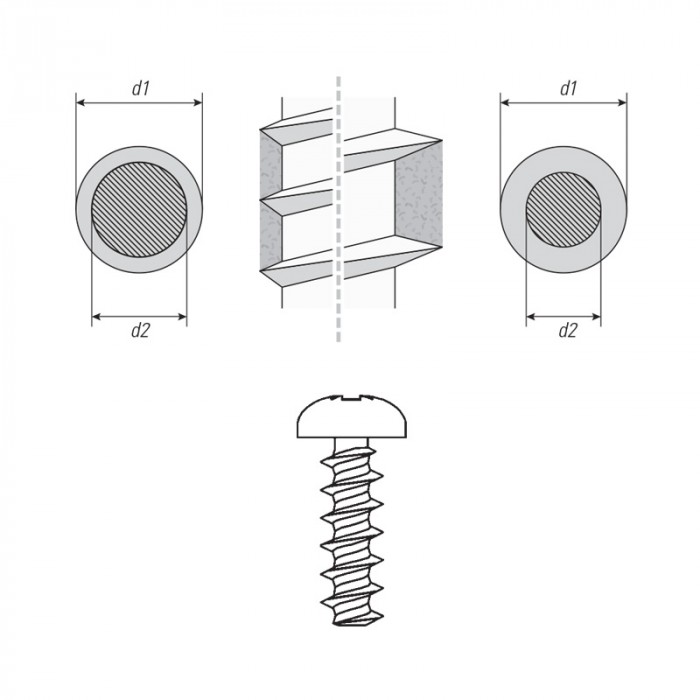

Screws with blunt tip for plastic FXTC+ type
Code |
d1 ø |
L |
d2 |
p |
Hole |
D |
K |
Recess PZ No. |
|
|---|---|---|---|---|---|---|---|---|---|
| 13TC+2205ZB | 2.2 | 5 | 1.25 | 0.98 | 1.54-1.87 | 3.9 | 1.5 | 1 | Data sheet |
| 13TC+2206ZB | 2.2 | 6 | 1.25 | 0.98 | 1.54-1.87 | 3.9 | 1.5 | 1 | Data sheet |
| 13TC+2208ZB | 2.2 | 8 | 1.25 | 0.98 | 1.54-1.87 | 3.9 | 1.5 | 1 | Data sheet |
| 13TC+2210ZB | 2.2 | 10 | 1.25 | 0.98 | 1.54-1.87 | 3.9 | 1.5 | 1 | Data sheet |
| 13TC+2505ZB | 2.5 | 5 | 1.4 | 1.12 | 1.75-2.12 | 4.4 | 1.7 | 1 | Data sheet |
| 13TC+2506ZB | 2.5 | 6 | 1.4 | 1.12 | 1.75-2.12 | 4.4 | 1.7 | 1 | Data sheet |
| 13TC+2508ZB | 2.5 | 8 | 1.4 | 1.12 | 1.75-2.12 | 4.4 | 1.7 | 1 | Data sheet |
| 13TC+2510ZB | 2.5 | 10 | 1.4 | 1.12 | 1.75-2.12 | 4.4 | 1.7 | 1 | Data sheet |
| 13TC+2512ZB | 2.5 | 12 | 1.4 | 1.12 | 1.75-2.12 | 4.4 | 1.7 | 1 | Data sheet |
| 13TC+3006ZB | 3 | 6 | 1.66 | 1.34 | 2.10-2.55 | 5.3 | 2 | 1 | Data sheet |
| 13TC+3008ZB | 3 | 8 | 1.66 | 1.34 | 2.10-2.55 | 5.3 | 2 | 1 | Data sheet |
| 13TC+3010ZB | 3 | 10 | 1.66 | 1.34 | 2.10-2.55 | 5.3 | 2 | 1 | Data sheet |
| 13TC+3012ZB | 3 | 12 | 1.66 | 1.34 | 2.10-2.55 | 5.3 | 2 | 1 | Data sheet |
| 13TC+3014ZB | 3 | 14 | 1.66 | 1.34 | 2.10-2.55 | 5.3 | 2 | 1 | Data sheet |
| 13TC+3016ZB | 3 | 16 | 1.66 | 1.34 | 2.10-2.55 | 5.3 | 2 | 1 | Data sheet |
| 13TC+3018ZB | 3 | 18 | 1.66 | 1.34 | 2.10-2.55 | 5.3 | 2 | 1 | Data sheet |
| 13TC+3020ZB | 3 | 20 | 1.66 | 1.34 | 2.10-2.55 | 5.3 | 2 | 1 | Data sheet |
| 13TC+3508ZB | 3.5 | 8 | 1.91 | 1.57 | 2.45-2.97 | 6.1 | 2.5 | 2 | Data sheet |
| 13TC+3510ZB | 3.5 | 10 | 1.91 | 1.57 | 2.45-2.97 | 6.1 | 2.5 | 2 | Data sheet |
| 13TC+3512ZB | 3.5 | 12 | 1.91 | 1.57 | 2.45-2.97 | 6.1 | 2.5 | 2 | Data sheet |
| 13TC+3514ZB | 3.5 | 14 | 1.91 | 1.57 | 2.45-2.97 | 6.1 | 2.5 | 2 | Data sheet |
| 13TC+3516ZB | 3.5 | 16 | 1.91 | 1.57 | 2.45-2.97 | 6.1 | 2.5 | 2 | Data sheet |
| 13TC+3518ZB | 3.5 | 18 | 1.91 | 1.57 | 2.45-2.97 | 6.1 | 2.5 | 2 | Data sheet |
| 13TC+3520ZB | 3.5 | 20 | 1.91 | 1.57 | 2.45-2.97 | 6.1 | 2.5 | 2 | Data sheet |
| 13TC+3525ZB | 3.5 | 25 | 1.91 | 1.57 | 2.45-2.97 | 6.1 | 2.5 | 2 | Data sheet |
| 13TC+4008ZB | 4 | 8 | 2.17 | 1.79 | 2.80-3.4 | 7 | 2.7 | 2 | Data sheet |
| 13TC+4010ZB | 4 | 10 | 2.17 | 1.79 | 2.80-3.4 | 7 | 2.7 | 2 | Data sheet |
| 13TC+4012ZB | 4 | 12 | 2.17 | 1.79 | 2.80-3.4 | 7 | 2.7 | 2 | Data sheet |
| 13TC+4014ZB | 4 | 14 | 2.17 | 1.79 | 2.80-3.4 | 7 | 2.7 | 2 | Data sheet |
| 13TC+4016ZB | 4 | 16 | 2.17 | 1.79 | 2.80-3.4 | 7 | 2.7 | 2 | Data sheet |
| 13TC+4018ZB | 4 | 18 | 2.17 | 1.79 | 2.80-3.4 | 7 | 2.7 | 2 | Data sheet |
| 13TC+4020ZB | 4 | 20 | 2.17 | 1.79 | 2.80-3.4 | 7 | 2.7 | 2 | Data sheet |
| 13TC+4025ZB | 4 | 25 | 2.17 | 1.79 | 2.80-3.4 | 7 | 2.7 | 2 | Data sheet |
| 13TC+4030ZB | 4 | 30 | 2.17 | 1.79 | 2.80-3.4 | 7 | 2.7 | 2 | Data sheet |
| 13TC+4508ZB | 4.5 | 8 | 2.53 | 2.04 | 3.15-3.82 | 7.3 | 2.8 | 2 | Data sheet |
| 13TC+4510ZB | 4.5 | 10 | 2.53 | 2.04 | 3.15-3.82 | 7.3 | 2.8 | 2 | Data sheet |
| 13TC+4512ZB | 4.5 | 12 | 2.53 | 2.04 | 3.15-3.82 | 7.3 | 2.8 | 2 | Data sheet |
| 13TC+4514ZB | 4.5 | 14 | 2.53 | 2.04 | 3.15-3.82 | 7.3 | 2.8 | 2 | Data sheet |
| 13TC+4516ZB | 4.5 | 16 | 2.53 | 2.04 | 3.15-3.82 | 7.3 | 2.8 | 2 | Data sheet |
| 13TC+4518ZB | 4.5 | 18 | 2.53 | 2.04 | 3.15-3.82 | 7.3 | 2.8 | 2 | Data sheet |
| 13TC+4520ZB | 4.5 | 20 | 2.53 | 2.04 | 3.15-3.82 | 7.3 | 2.8 | 2 | Data sheet |
| 13TC+4525ZB | 4.5 | 25 | 2.53 | 2.04 | 3.15-3.82 | 7.3 | 2.8 | 2 | Data sheet |
| 13TC+4530ZB | 4.5 | 30 | 2.53 | 2.04 | 3.15-3.82 | 7.3 | 2.8 | 2 | Data sheet |
| 13TC+5012ZB | 5 | 12 | 2.68 | 2.24 | 3.50-4.25 | 8.8 | 3.4 | 2 | Data sheet |
| 13TC+5014ZB | 5 | 14 | 2.68 | 2.24 | 3.50-4.25 | 8.8 | 3.4 | 2 | Data sheet |
| 13TC+5016ZB | 5 | 16 | 2.68 | 2.24 | 3.50-4.25 | 8.8 | 3.4 | 2 | Data sheet |
| 13TC+5018ZB | 5 | 18 | 2.68 | 2.24 | 3.50-4.25 | 8.8 | 3.4 | 2 | Data sheet |
| 13TC+5020ZB | 5 | 20 | 2.68 | 2.24 | 3.50-4.25 | 8.8 | 3.4 | 2 | Data sheet |
| 13TC+5025ZB | 5 | 25 | 2.68 | 2.24 | 3.50-4.25 | 8.8 | 3.4 | 2 | Data sheet |
| 13TC+5030ZB | 5 | 30 | 2.68 | 2.24 | 3.50-4.25 | 8.8 | 3.4 | 2 | Data sheet |
| 13TC+5035ZB | 5 | 35 | 2.68 | 2.24 | 3.50-4.25 | 8.8 | 3.4 | 2 | Data sheet |
| 13TC+5512ZB | 5.5 | 12 | 3.47 | 2.44 | 3.85-4.67 | 9.3 | 3.5 | 2 | Data sheet |
| 13TC+5514ZB | 5.5 | 14 | 3.47 | 2.44 | 3.85-4.67 | 9.3 | 3.5 | 2 | Data sheet |
| 13TC+5516ZB | 5.5 | 16 | 3.47 | 2.44 | 3.85-4.67 | 9.3 | 3.5 | 2 | Data sheet |
| 13TC+5518ZB | 5.5 | 18 | 3.47 | 2.44 | 3.85-4.67 | 9.3 | 3.5 | 2 | Data sheet |
| 13TC+5520ZB | 5.5 | 20 | 3.47 | 2.44 | 3.85-4.67 | 9.3 | 3.5 | 2 | Data sheet |
| 13TC+5525ZB | 5.5 | 25 | 3.47 | 2.44 | 3.85-4.67 | 9.3 | 3.5 | 2 | Data sheet |
| 13TC+5530ZB | 5.5 | 30 | 3.47 | 2.44 | 3.85-4.67 | 9.3 | 3.5 | 2 | Data sheet |
| 13TC+5535ZB | 5.5 | 35 | 3.47 | 2.44 | 3.85-4.67 | 9.3 | 3.5 | 2 | Data sheet |
| 13TC+5540ZB | 5.5 | 40 | 3.47 | 2.44 | 3.85-4.67 | 9.3 | 3.5 | 2 | Data sheet |
| 13TC+6012ZB | 6 | 12 | 3.19 | 2.69 | 4.20-5.1 | 10.5 | 4 | 3 | Data sheet |
| 13TC+6014ZB | 6 | 14 | 3.19 | 2.69 | 4.20-5.1 | 10.5 | 4 | 3 | Data sheet |
| 13TC+6016ZB | 6 | 16 | 3.19 | 2.69 | 4.20-5.1 | 10.5 | 4 | 3 | Data sheet |
| 13TC+6018ZB | 6 | 18 | 3.19 | 2.69 | 4.20-5.1 | 10.5 | 4 | 3 | Data sheet |
| 13TC+6020ZB | 6 | 20 | 3.19 | 2.69 | 4.20-5.1 | 10.5 | 4 | 3 | Data sheet |
| 13TC+6025ZB | 6 | 25 | 3.19 | 2.69 | 4.20-5.1 | 10.5 | 4 | 3 | Data sheet |
| 13TC+6030ZB | 6 | 30 | 3.19 | 2.69 | 4.20-5.1 | 10.5 | 4 | 3 | Data sheet |
| 13TC+6035ZB | 6 | 35 | 3.19 | 2.69 | 4.20-5.1 | 10.5 | 4 | 3 | Data sheet |
| 13TC+6040ZB | 6 | 40 | 3.19 | 2.69 | 4.20-5.1 | 10.5 | 4 | 3 | Data sheet |
| 13TC+6045ZB | 6 | 45 | 3.19 | 2.69 | 4.20-5.1 | 10.5 | 4 | 3 | Data sheet |
| 13TC+7012ZB | 7 | 12 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
| 13TC+7014ZB | 7 | 14 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
| 13TC+7016ZB | 7 | 16 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
| 13TC+7018ZB | 7 | 18 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
| 13TC+7020ZB | 7 | 20 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
| 13TC+7025ZB | 7 | 25 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
| 13TC+7030ZB | 7 | 30 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
| 13TC+7035ZB | 7 | 35 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
| 13TC+7040ZB | 7 | 40 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
| 13TC+7045ZB | 7 | 45 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
| 13TC+7050ZB | 7 | 50 | 4.77 | 3.04 | 4.90-5.95 | 12.3 | 4.5 | 3 | Data sheet |
