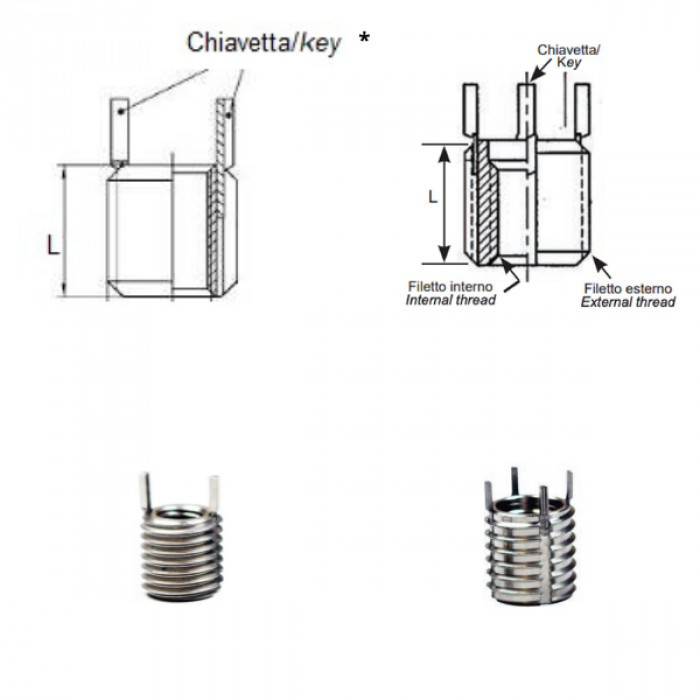

Key locking inserts KNH
Code |
Internal thread |
External thread |
L mm |
|
|---|---|---|---|---|
| 83ACKNHM04 | M4x0.7 | M8x1.25 | 8.0 | Data sheet |
| 83ACKNHM05 | M5x0.8 | M10x1.25 | 10.0 | Data sheet |
| 83ACKNHM06 | M6x1 | M12x1.25 | 12.0 | Data sheet |
| 83ACKNHM08 | M8x1.25 | M14x1.5 | 14.0 | Data sheet |
| 83ACKNHM08P100 | M8x1 | M14x1.5 | 14.0 | Data sheet |
| 83ACKNHM10 | M10x1.5 | M16x1.5 | 16.0 | Data sheet |
| 83ACKNHM10P125 | M10x1.25 | M16x1.5 | 16.0 | Data sheet |
| 83ACKNHM12 | M12x1.75 | M18x1.5 | 18.0 | Data sheet |
| 83ACKNHM12P125 | M12x1.25 | M18x1.5 | 18.0 | Data sheet |
| 83ACKNHM14 | M14x2 | M20x1.5 | 20.0 | Data sheet |
| 83ACKNHM14P150 | M14x1.5 | M20x1.5 | 20.0 | Data sheet |
| 83ACKNHM16 | M16x2 | M22x1.5 | 22.0 | Data sheet |
| 83ACKNHM16P150 | M16x1.5 | M22x1.5 | 22.0 | Data sheet |
| 83ACKNHM18 | M18x1.5 | M24x1.5 | 24.0 | Data sheet |
| 83ACKNHM20 | M20x2.5 | M30x2 | 30.0 | Data sheet |
| 83ACKNHM20P150 | M20x1.5 | M30x2 | 30.0 | Data sheet |
| 83ACKNHM22 | M22x1.5 | M32x2 | 32.0 | Data sheet |
| 83ACKNHM24 | M24x3 | M33x2 | 33.0 | Data sheet |
| 83ACKNHM24P200 | M24x2 | M33x2 | 33.0 | Data sheet |
