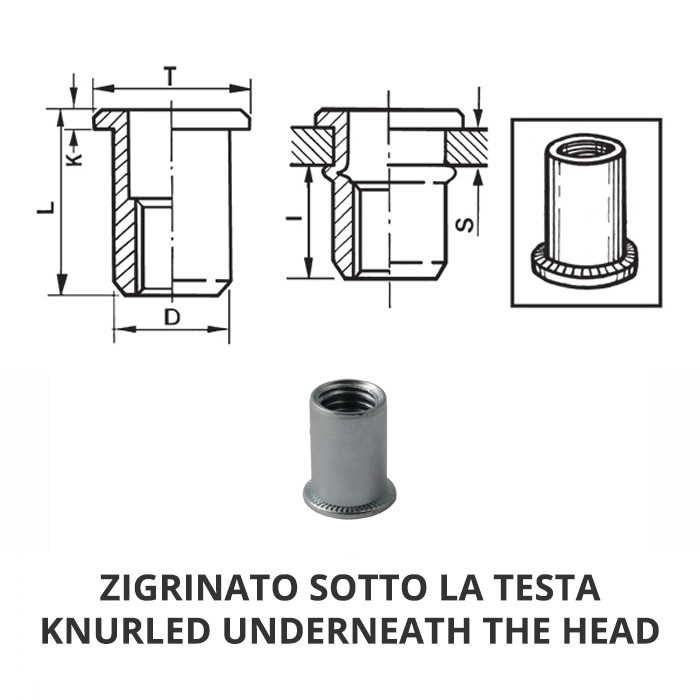

Cylindrical aluminium threaded inserts - Flat head
Code |
|
S GRIP |
D +0,07-0,1 |
|
T +/0,5 |
K +/0,15 |
L +/0,5 |
I |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85ALITTM03C | M3 | 0.5 - 2 | 4.9 | 5 | 8 | 0.75 | 9 | 5.5 | 0.7 | Data sheet |
| 85ALITTM03L | M3 | 1.8 - 3 | 4.9 | 5 | 7 | 0.8 | 10.5 | 4.2 | 0.7 | Data sheet |
| 85ALITTM04C | M4 | 0.5 - 2 | 5.9 | 6 | 8.5 | 0.8 | 10.5 | 6 | 2.5 | Data sheet |
| 85ALITTM04L | M4 | 2.5 - 4 | 5.9 | 6 | 9 | 1 | 13 | 6 | 2.5 | Data sheet |
| 85ALITTM05C | M5 | 0.5 - 2.5 | 6.9 | 7 | 10 | 1 | 13 | 7.5 | 5 | Data sheet |
| 85ALITTM05L | M5 | 3 - 5 | 6,9 | 7 | 10 | 1.2 | 15.5 | 7.7 | 5 | Data sheet |
| 85ALITTM06C | M6 | 0.5 - 2.5 | 8.9 | 9 | 12,3 | 1.4 | 15 | 9.2 | 8 | Data sheet |
| 85ALITTM06L | M6 | 2.5 - 4 | 8.9 | 9 | 12.3 | 1.5 | 16.5 | 8 | 8 | Data sheet |
| 85ALITTM08C | M8 | 1 - 3 | 10.9 | 11 | 14.3 | 1.5 | 16,5 | 10.5 | 20 | Data sheet |
| 85ALITTM08L | M8 | 3 - 6 | 10.9 | 11 | 15 | 1.5 | 21 | 15 | 20 | Data sheet |
| 85ALITTM10C12 | M10 | 0.8 - 3.5 | 11.9 | 12 | 16 | 1.7 | 19 | 10.5 | 25 | Data sheet |
| 85ALITTM10L12 | M10 | 3.5 - 6 | 11.9 | 12 | 16 | 1.7 | 22 | 11 | 25 | Data sheet |
| 85ALITTM10C13 | M10 | 1 - 4 | 12.9 | 13 | 16,3 | 1,6 | 19 | 12.5 | 25 | Data sheet |
| 85ALITTM10L13 | M10 | 4.5 - 7.5 | 12.9 | 13 | 19 | 2 | 27,5 | 14.5 | 25 | Data sheet |
| 85ALITTM12C16 | M12 | 1 - 4 | 15.9 | 16 | 23 | 2 | 26 | 16.5 | 25 | Data sheet |
| 85ALITTM12L16 | M12 | 3.5 - 7 | 15.9 | 16 | 23 | 2 | 29 | 16.5 | 25 | Data sheet |
