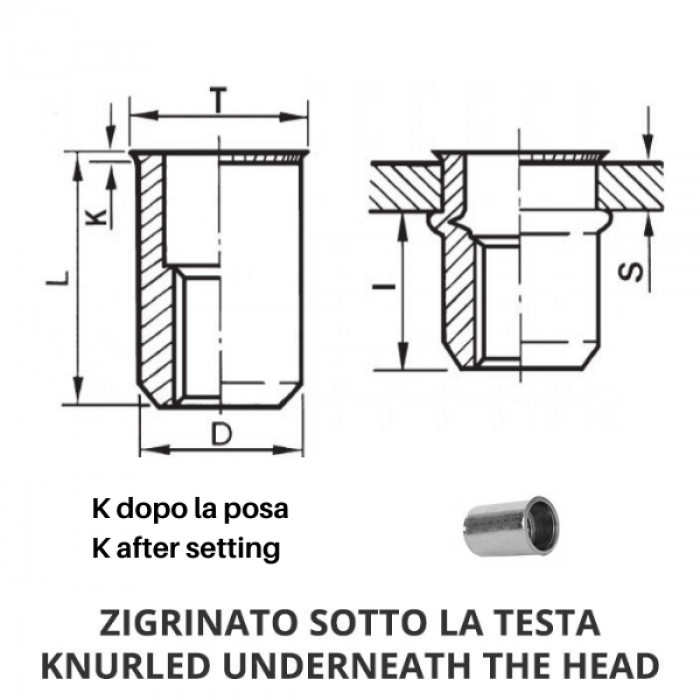

Cylindrical aluminium threaded inserts - Reduced countersunk head
Code |
|
S GRIP |
D +0,07-0,1 |
+0,1/-0
|
T +/0,5 |
K +/0,15 |
L +/0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85ALITRM03C | M3 | 0.3 - 1.5 | 4.9 | 5 | 5.6 | 0.35 | 8.5 | 5.5 | 0.7 | Data sheet |
| 85ALITRM03L | M3 | 1.5 - 2.5 | 4.9 | 5 | 5.6 | 0.35 | 10 | 5.5 | 0.7 | Data sheet |
| 85ALITRM04C | M4 | 0.5 - 2 | 5.9 | 6 | 7 | 0.5 | 10.5 | 6.5 | 2.5 | Data sheet |
| 85ALITRM04L | M4 | 2.5 - 4 | 5.9 | 6 | 7 | 0.5 | 13 | 6 | 2.5 | Data sheet |
| 85ALITRM05C | M5 | 0.5 - 2 | 6.9 | 7 | 8 | 0.5 | 11.5 | 7 | 5 | Data sheet |
| 85ALITRM05L | M5 | 2 - 4.5 | 6.9 | 7 | 8 | 0.5 | 13 | 6.8 | 5 | Data sheet |
| 85ALITRM06C | M6 | 0.5 - 2.5 | 8.9 | 9 | 10 | 0.6 | 14 | 8.5 | 8 | Data sheet |
| 85ALITRM06L | M6 | 2 - 4 | 8.9 | 9 | 10 | 0.5 | 16 | 8,6 | 8 | Data sheet |
| 85ALITRM08C | M8 | 1 - 2.5 | 10.9 | 11 | 12 | 0.6 | 15.5 | 10 | 20 | Data sheet |
| 85ALITRM08L | M8 | 1.5 - 4.5 | 10.9 | 11 | 12 | 0.5 | 18 | 10 | 20 | Data sheet |
| 85ALITRM10C12 | M10 | 0.8 - 3 | 11.9 | 12 | 13.5 | 0.8 | 18 | 11.2 | 25 | Data sheet |
| 85ALITRM10L12 | M10 | 2 - 4.5 | 11.9 | 12 | 13.5 | 0.8 | 19.5 | 11.2 | 25 | Data sheet |
| 85ALITRM10C13 | M10 | 1 - 3 | 12.9 | 13 | 14 | 0.7 | 17.5 | 12 | 25 | Data sheet |
| 85ALITRM10L13 | M10 | 3 - 6 | 12.9 | 13 | 14 | 0.5 | 23 | 13.3 | 25 | Data sheet |
| 85ALITRM12C16 | M12 | 1 - 4 | 15.9 | 16 | 17.2 | 0.6 | 24 | 16 | 25 | Data sheet |
| 85ALITRM12L16 | M12 | 3.5 - 7.5 | 15.9 | 16 | 17.2 | 0.6 | 27.5 | 16 | 25 | Data sheet |
