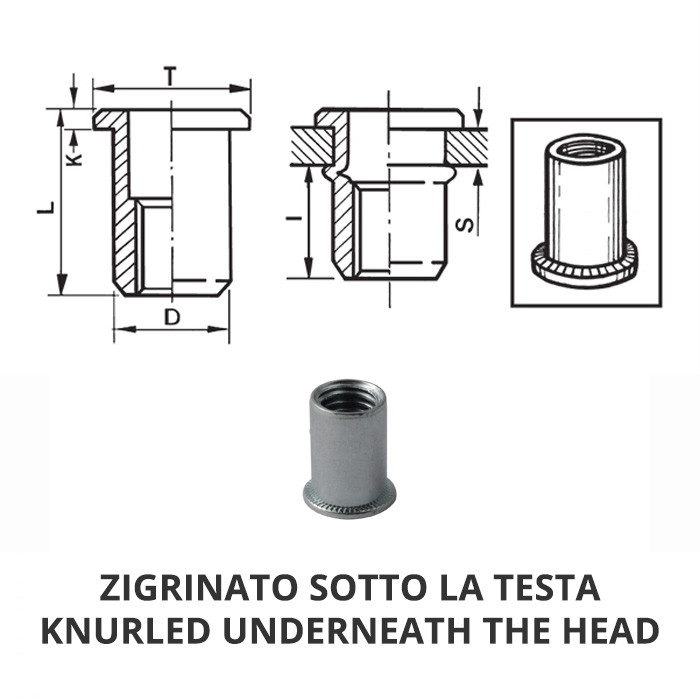

Cylindrical threaded inserts - Flat head
Code |
|
S GRIP |
D +0,07/-0,1 |
+0,1/-0
|
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85IXITTM03C | M3 | 0.3 - 1.8 | 4.9 | 5 | 8 | 0.75 | 9 | 5.5 | 2 | Data sheet |
| 85IXITTM04C | M4 | 0.5 - 2 | 5.9 | 6 | 8.5 | 0.8 | 10.5 | 6 | 5 | Data sheet |
| 85IXITTM05C | M5 | 0.5 - 2.5 | 6.9 | 7 | 10 | 1 | 13 | 7.5 | 8.5 | Data sheet |
| 85IXITTM06C | M6 | 0.5 - 3 | 8.9 | 9 | 12.3 | 1.3 | 15.5 | 9.2 | 15 | Data sheet |
| 85IXITTM08C | M8 | 1 - 3.5 | 10.9 | 11 | 15 | 1.5 | 18.5 | 11.5 | 26 | Data sheet |
| 85IXITTM10C12 | M10 | 0.8 - 3.5 | 11.9 | 12 | 16 | 1.7 | 19 | 10.5 | 50 | Data sheet |
| 85IXITTM10C13 | M10 | 1 - 4 | 12.9 | 13 | 17 | 1.6 | 21 | 12.5 | 50 | Data sheet |
| 85IXITTM12C16 | M12 | 1 - 4 | 15.9 | 16 | 23 | 2 | 26 | 16.5 | 80 | Data sheet |
