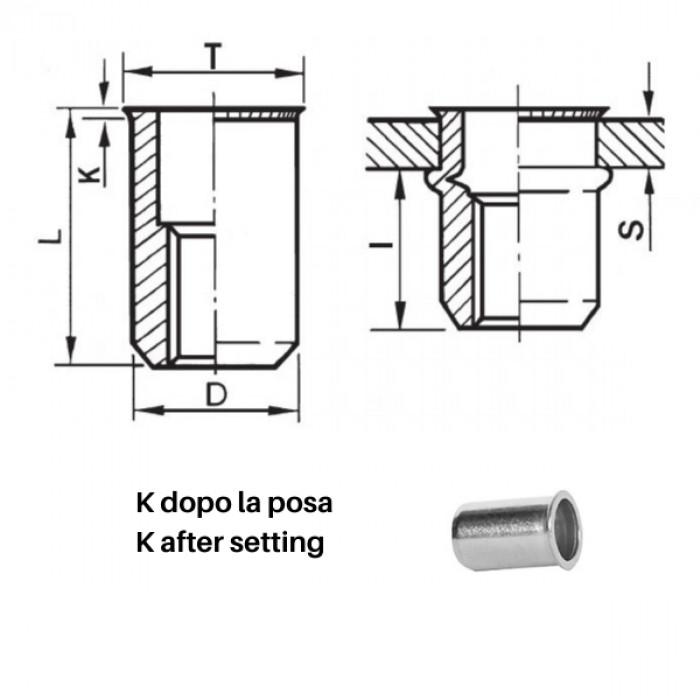

Cylindrical threaded inserts - Reduced countersunk head
Code |
|
S GRIP |
D +0,07/-0,1 |
+0,1/-0
|
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85IXITRM03C | M3 | 0.3 - 1.5 | 4.9 | 5 | 5.6 | 0.35 | 8.5 | 5.5 | 1 | Data sheet |
| 85IXITRM04C | M4 | 0.5 - 2 | 5.9 | 6 | 7 | 0.5 | 10.5 | 6.5 | 3 | Data sheet |
| 85IXITRM05C | M5 | 0.5 - 2 | 6.9 | 7 | 8 | 0.5 | 11.5 | 7 | 6 | Data sheet |
| 85IXITRM06C | M6 | 0.5 - 2.5 | 8.9 | 9 | 10 | 0.6 | 14 | 8.5 | 11 | Data sheet |
| 85IXITRM08C | M8 | 0.5 - 3 | 10.9 | 11 | 12 | 0.5 | 16.5 | 10.5 | 20 | Data sheet |
| 85IXITRM10C12 | M10 | 0.8 - 3 | 11.9 | 12 | 13.5 | 0.8 | 18 | 11.2 | 32 | Data sheet |
| 85IXITRM10C13 | M10 | 1 - 3.5 | 12.9 | 13 | 14.1 | 0.6 | 19.5 | 11.5 | 32 | Data sheet |
