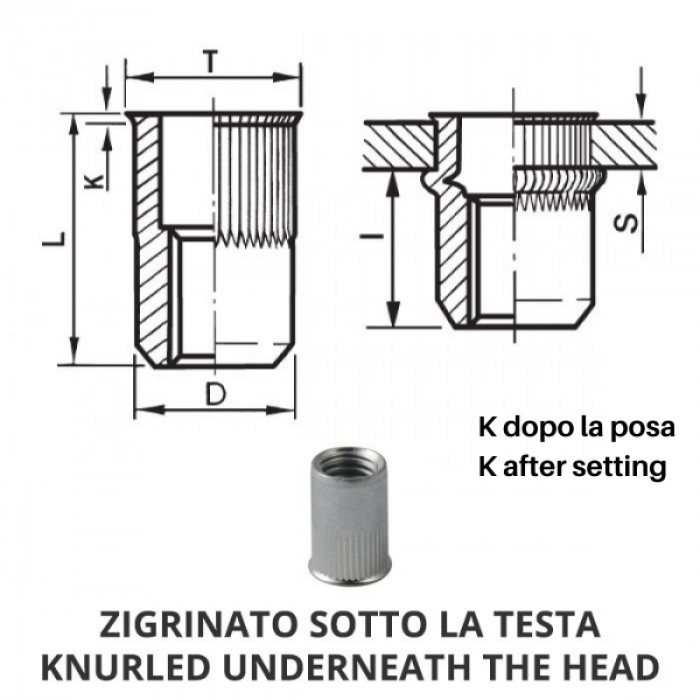

Knurled cylindrical threaded inserts - Reduced countersunk head
Code |
|
S GRIP |
D +0,07/-0,1 |
+0,1/-0
|
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85IXITRGM03C | M3 | 0.5 - 2 | 4.9 | 5 | 6 | 0.4 | 9 | 5.5 | 1 | Data sheet |
| 85IXITRGM03L | M3 | 1.5 - 2.5 | 4.9 | 5 | 5.8 | 0.5 | 10 | 5.5 | 1 | Data sheet |
| 85IXITRGM04C | M4 | 0.5 - 2 | 5.9 | 6 | 7 | 0.5 | 10.5 | 6.5 | 3 | Data sheet |
| 85IXITRGM04L | M4 | 2.5 - 4 | 5.9 | 6 | 7 | 0.5 | 12.5 | 6.5 | 3 | Data sheet |
| 85IXITRGM05C | M5 | 0.5 - 2 | 6.9 | 7 | 8 | 0.5 | 11.5 | 7.2 | 6 | Data sheet |
| 85IXITRGM05L | M5 | 2 - 4 | 6.9 | 7 | 8 | 0.5 | 13 | 6.8 | 6 | Data sheet |
| 85IXITRGM06C | M6 | 0.5 - 3 | 8.9 | 9 | 10 | 0.6 | 14 | 9 | 11 | Data sheet |
| 85IXITRGM06L | M6 | 3 - 5 | 8.9 | 9 | 10 | 0.6 | 16 | 11 | 11 | Data sheet |
| 85IXITRGM08C | M8 | 1 - 3.5 | 10.9 | 11 | 12 | 0.5 | 16.5 | 10.5 | 20 | Data sheet |
| 85IXITRGM08L | M8 | 3.5 - 6 | 10.9 | 11 | 12 | 0.65 | 19.5 | 10 | 20 | Data sheet |
| 85IXITRGM10C12 | M10 | 0.8 - 3 | 11.9 | 12 | 13.5 | 0.8 | 18 | 11.2 | 32 | Data sheet |
| 85IXITRGM10L12 | M10 | 2 - 4.5 | 11.9 | 12 | 13.5 | 0.8 | 19.5 | 11.2 | 32 | Data sheet |
| 85IXITRGM10C13 | M10 | 1 - 3.5 | 12.9 | 13 | 14 | 0.7 | 17.7 | 10.7 | 32 | Data sheet |
| 85IXITRGM10L13 | M10 | 3.5 - 6 | 12.9 | 13 | 14 | 0.7 | 23 | 13.3 | 32 | Data sheet |
| 85IXITRGM10XL13 | M10 | 6 - 8 | 12.9 | 13 | 14 | 0.7 | 23 | 13.3 | 32 | Data sheet |
| 85IXITRGM12C16 | M12 | 1 - 4 | 15.9 | 16 | 17.6 | 0.75 | 24.2 | 14 | 50 | Data sheet |
