Knurled cylindrical steel threaded inserts - Countersunk head

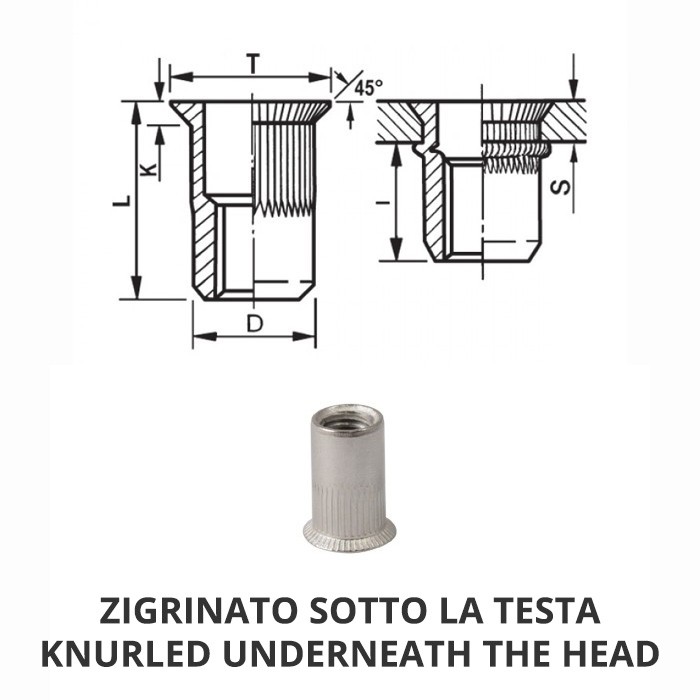

Code |
|
S GRIP |
D +0,07/-0,1 |
+0,1-0
|
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85ACITSGM03C | M3 | 1.6 - 2.5 | 4.9 | 5 | 6.6 | 1.5 | 9.5 | 4.5 | 1 | Data sheet |
| 85ACITSGM03L | M3 | 2.5 - 4 | 4.9 | 5 | 6.6 | 1.5 | 10.5 | 4.5 | 1 | Data sheet |
| 85ACITSGM04C | M4 | 1.5 - 3 | 5.9 | 6 | 9 | 1.5 | 12 | 6.5 | 4 | Data sheet |
| 85ACITSGM04L | M4 | 3 - 5 | 5.9 | 6 | 9 | 1.5 | 14 | 6 | 4 | Data sheet |
| 85ACITSGM05C | M5 | 1.5 - 3.5 | 6.9 | 7 | 10 | 1.5 | 13 | 7.5 | 8 | Data sheet |
| 85ACITSGM05L | M5 | 3.5 - 6 | 6.9 | 7 | 10 | 1.5 | 15 | 8.5 | 8 | Data sheet |
| 85ACITSGM06C | M6 | 1.5 - 4 | 8.9 | 9 | 12 | 1.5 | 15.5 | 9 | 15 | Data sheet |
| 85ACITSGM06L | M6 | 4 - 6 | 8.9 | 9 | 12 | 1.5 | 18 | 9 | 15 | Data sheet |
| 85ACITSGM08C | M8 | 2 - 4.5 | 10.9 | 11 | 14 | 1.5 | 18.5 | 10 | 26 | Data sheet |
| 85ACITSGM08L | M8 | 4 - 6.5 | 10.9 | 11 | 14 | 1.5 | 19 | 10 | 26 | Data sheet |
| 85ACITSGM10C12 | M10 | 1.6 - 5 | 11.9 | 12 | 15 | 1.5 | 19 | 11.5 | 45 | Data sheet |
| 85ACITSGM10L12 | M10 | 5 - 7.5 | 11.9 | 12 | 15 | 1.5 | 24 | 11.5 | 45 | Data sheet |
| 85ACITSGM10C13 | M10 | 2 - 5 | 12.9 | 13 | 16 | 1.5 | 21 | 11.5 | 45 | Data sheet |
| 85ACITSGM10L13 | M10 | 5 - 7.5 | 12.9 | 13 | 16 | 1.5 | 24 | 11.5 | 45 | Data sheet |
| 85ACITSGM12C15 | M12 | 1.6 - 5 | 14.9 | 15 | 18 | 1.5 | 22.5 | 14.5 | 70 | Data sheet |
| 85ACITSGM12C16 | M12 | 1.7 - 4.5 | 15.9 | 16 | 19 | 1.9 | 24 | 17.5 | 70 | Data sheet |
| 85ACITSGM12L16 | M12 | 4 - 7.5 | 15.9 | 16 | 19 | 1.9 | 29 | 17.5 | 70 | Data sheet |
