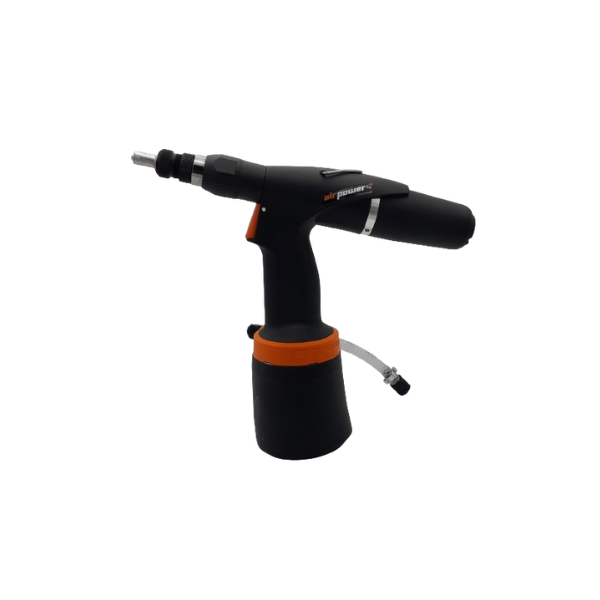

Oleopneumatic tool for threaded inserts

Oleopneumatic tool for threaded inserts

Oleopneumatic tool

CODE

Features

  DIMENSIONS 		USAGE MANDREL AND NOSE PIECES INCLUDED PRESSURE REQUIRED WEIGHT STROKE TRACTION POWER Download technical sheet
90F4B312 285(A)
270(H)
99(D)		 M3 - M12 M4 : M10 5 - 7 Bar 1,6 Kg 7 mm 18,7 kN Scheda
90F4B312K 285(A)
270(H)
99(D)		 M3 - M12 M3 : M12 5 - 7 Bar 1,6 Kg 7 mm 18,7 kN Scheda
90F5812 280(A)
270(H)
120(D)		 M8 - M12 M8 : M12 5 - 7 Bar 2,23 Kg 8 mm 27 kN Scheda

Components and spare parts

Code

Product
92ATAP4M3 Mandrel M3
92ATAP4M4 Mandrel M4
92ATAP4M5 Mandrel M5
92ATAP4M6 Mandrel M6
92ATAP4M8 Mandrel M8
92ATAP4M10 Mandrel M10
92ATAP4M12 Mandrel M12
92BUAP4M4 Blind rivet bolt M4
92BUAP4M5 Blind rivet bolt M5
92BUAP4M6 Blind rivet bolt M6
92BUAP4M8 Blind rivet bolt M8
92TEAP4M3 Nose piece M3
92TEAP4M4 Nose piece M4
92TEAP4M5 Nose piece M5
92TEAP4M6 Nose piece M6
92TEAP4M8 Nose piece M8
92TEAP4M10 Nose piece M10
92TEAP4M12 Nose piece M12

Nose piece

Nose piece

Mandrel

Mandrel

Blind rivet bolt

Blind rivet bolt

90F4B312K

One of the fastest tool on the market, very light. Mandrels can be changed without using any wrench.
Tool to install the rivet nuts using stroke regulation.


Ask for a quotation
